Structure Vision’s DigiPacTM software can be used to model the structure and predict the properties of various particulate systems.

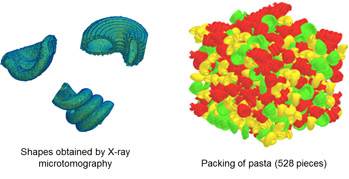

![Shapes obtained by X-ray microtomography / Packing of pasta (528 pieces) Shapes obtained by X-ray microtomography / Packing of pasta (528 pieces)](images/digipack1.jpg)

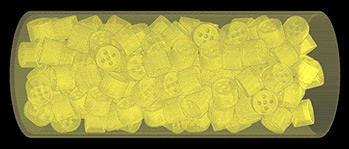

![DigiPac™ analysis of catalyst pellets in a packed column DigiPac™ analysis of catalyst pellets in a packed column](images/digipack2.jpg)
- Given a number of arbitrarily shaped particles of a particular shape and size, how are they likely to pack together in a confined space?
- Based on this packed structure, how is the entire assembly likely to behave in real life (e.g. how will gases flow through the structure and what are its heat transfer properties)?
DigiPacTM has been used to assess the behaviour of catalyst systems on chemical plants and has also been used to predict the likely dissolution behaviour of tablets in the pharmaceuticals industry.
Modelling of Packed Structures
![DigiPac™ used to determine segregation of particle blends DigiPac™ used to determine segregation of particle blends](images/digipack3.jpg)
- Packing density of particles of any shape and size distributions in a confined space (or container) of arbitrary geometry.
- Other structural characteristics (e.g., particle orientation, contact statistics, distribution of individual components).
- Optimisation of storage capacity.
- Tendency of segregation during powder handling due to vibration, shaking etc.
- Surface coating.
- Structure of composite materials.
![DigiPac™ coating simulation DigiPac™ coating simulation](images/digipack4.jpg)
Input to DigiPacTM can be from:
- Scanned powder and particle samples, using X-Ray Tomography or desktop laser scanning
VIEW VIDEO.
- Converted from CAD files in most formats.
- Parametrically defined standard shapes, such as ellipsoids, crystals, pellets, etc.
Property Prediction of Packed Structures
DigiPacTM can provide the following analysis of packed structures and particles:

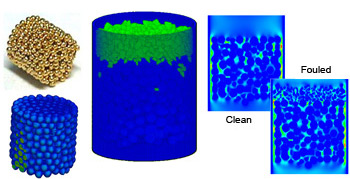

![DigiPac™ flow module being used to assess filter performance DigiPac™ flow module being used to assess filter performance](images/digipack5.jpg)
- Permeability and fluid flow through packing structure.
- Effective thermal conductivity.
- Effective electrical conductivity.
- Sintering.
- Mechanical strength and force distribution.
- Consolidation and compaction.
- Light scattering properties of a coating layer.
- Dissolution of tablets and granules.
- Heap/column leaching.

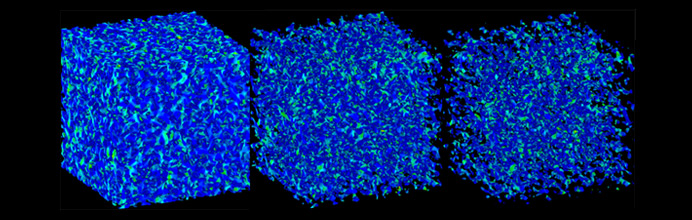

![Characterisation of flow through porous media, in this case a bed of sand particles. Characterisation of flow through porous media, in this case a bed of sand particles.](images/digipack6.jpg)

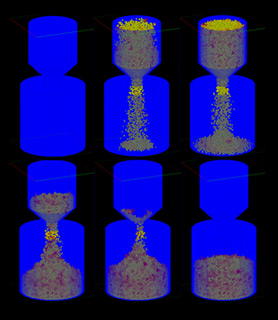

![DigiPac™ analysis of aggregate flow through a hopper DigiPac™ analysis of aggregate flow through a hopper](images/digipack7.jpg)

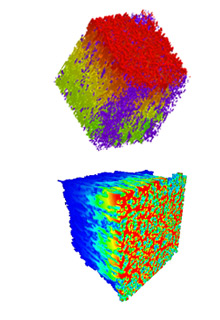

![Simulated heat transfer through a section of foam scanned using XMT Simulated heat transfer through a section of foam scanned using XMT](images/digipack8.jpg)

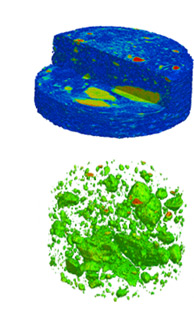

![Section of XMT scanned aspirin tablet (top) and simulated dissolution (bottom) Section of XMT scanned aspirin tablet (top) and simulated dissolution (bottom)](images/digipack9.jpg)
